DOW 7

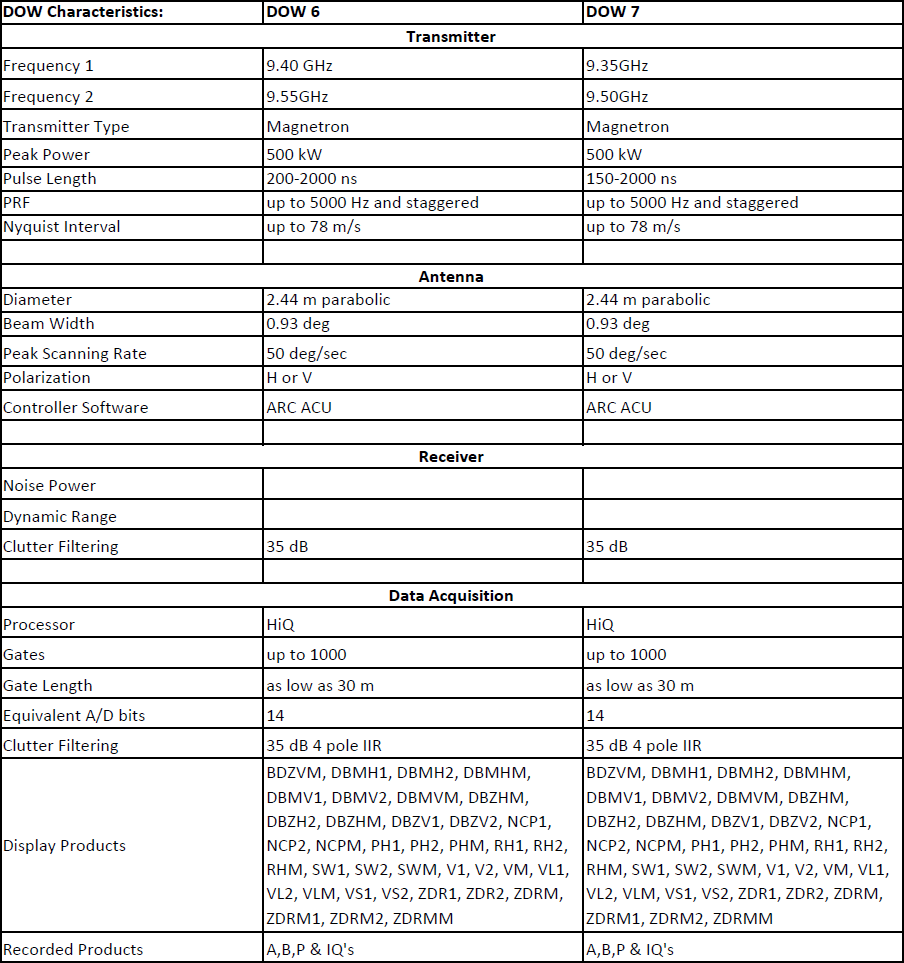

Like DOW 6, DOW 7 is a Dual Polarization and Dual Frequency radar, yielding double speed dual-pol data via 45-degree and H/V simultaneous modes. Radar specifications are found below. Scroll down (or click here) to view system schematics and a list of the projects in which DOW 7 has been involved.
DOW 7 measures 8.5' wide by 30' long by 14' high (with mast fully extended, the height is 17m.)
The schematics for DOW 7 will soon be posted below:
